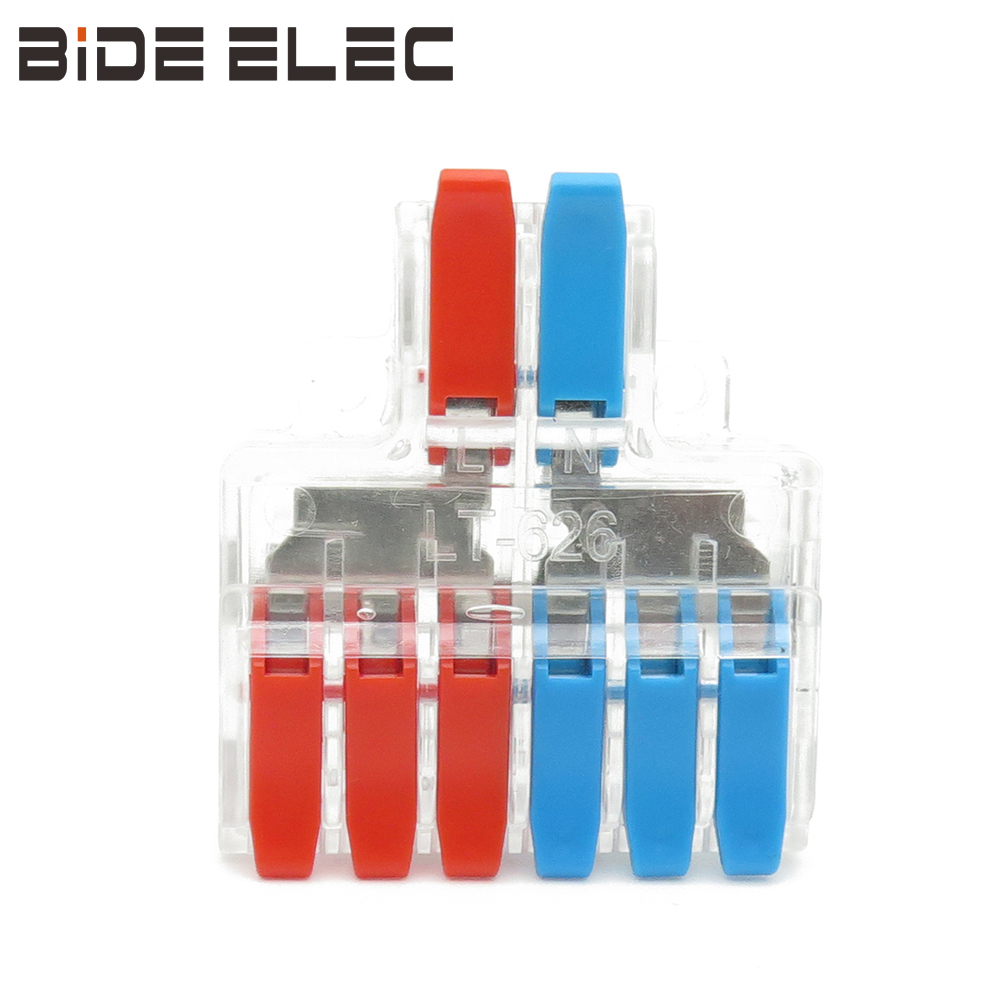

LT626T Transparent 2 In 6 Out Mating Sub-Line Wire Connector Max 6mm2

Market Price: 0.52

Wholesale Price:$ 0.35

LT-626T named split type butt connector or compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box;
LT-626T mating sub-line connector is improved from PCT-612, which can realize the direct docking of Neutral and live wires on the opposite side ;
LT-626T universal terminal can connect single strand / multi hook stranded wire and thin multi strand wire 0.08-6mm², which can easily solve the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, and realize the docking and branching functions of Neutral and live wires on the same terminal, improve the wiring efficiency and increase the safety ;
LT-626T sub-line terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether it has been safely connected. If there is something wrong, the wiring can be repeated by ultra simple operation (open the operating handle, pull out insert the wire, press the operating handle) ;
Based on the original product PCT-2122, the series products of split line butt joint have carried out revolutionary innovation, which makes the wiring more convenient, reliable and safe, and the domestic innovation makes the product more cost-effective. ;
6mm² split type butt joint series have 4 types : LT-624, LT-626, LT-636 and LT-639 ;
The color of split line docking series can be customized: gray (default), transparent, etc.; handle color: red, blue, black, white, orange (default), etc. ;
Different manufacturers take different price based on following factors :
1. Whether the contact surface material is made of red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmentally friendly
8. Whether the injection molding process is exquisite
9. Whether the finished product packaging is simple and crude

点击购买

Technical parameters
Connection number: 8 (Live Line 1 in and 3 out, Neutral wire1 in and 3 out)
Rated voltage: 250 / 600V
Rated current : 35A
Withstand voltage: 4KV
Applicable wire diameter: 0.08-6.0mm² single / multi strand soft and hard wire
Stripping length: 12mm

Material description
Color: transparent
Contact surface material: tinned red copper T2
Clamping material: high grade nichrome spring steel S301
Shell material: new environment-friendly polycarbonate (PC)

Product certification
Rosh, CE, CQC, etc
