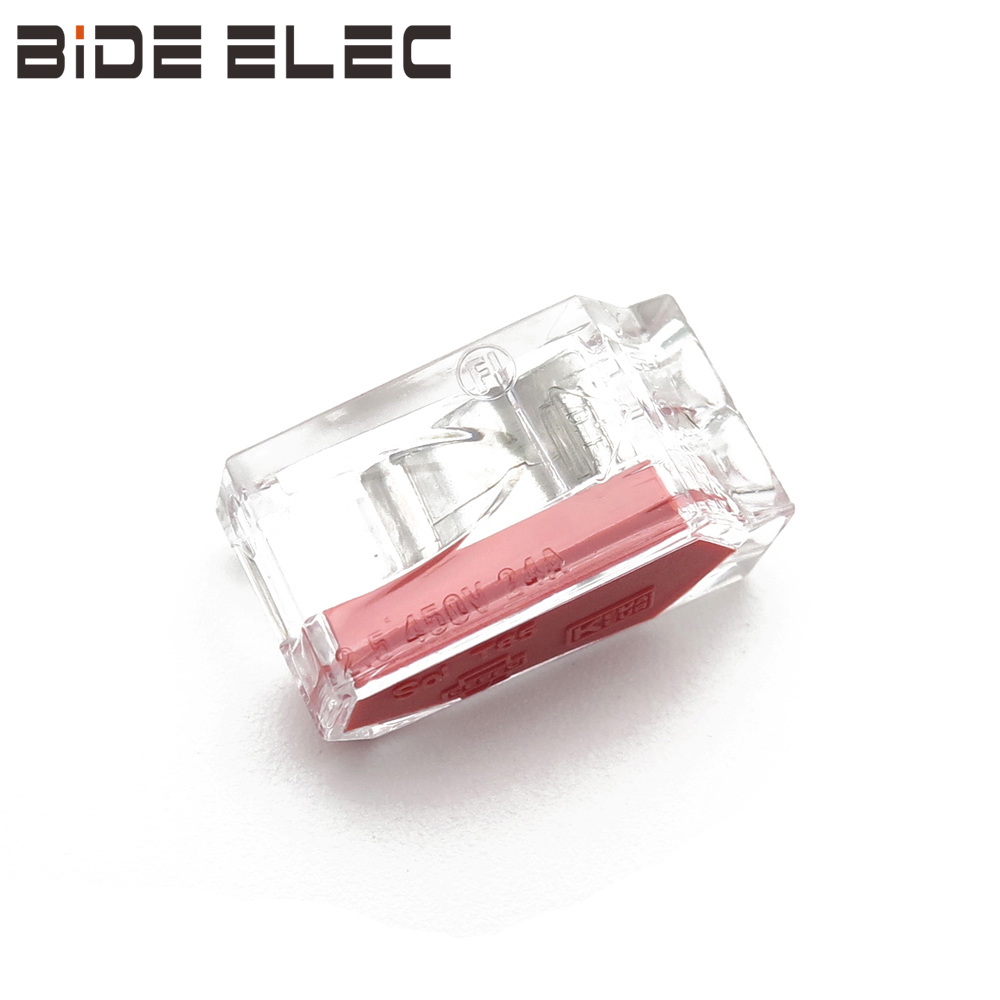

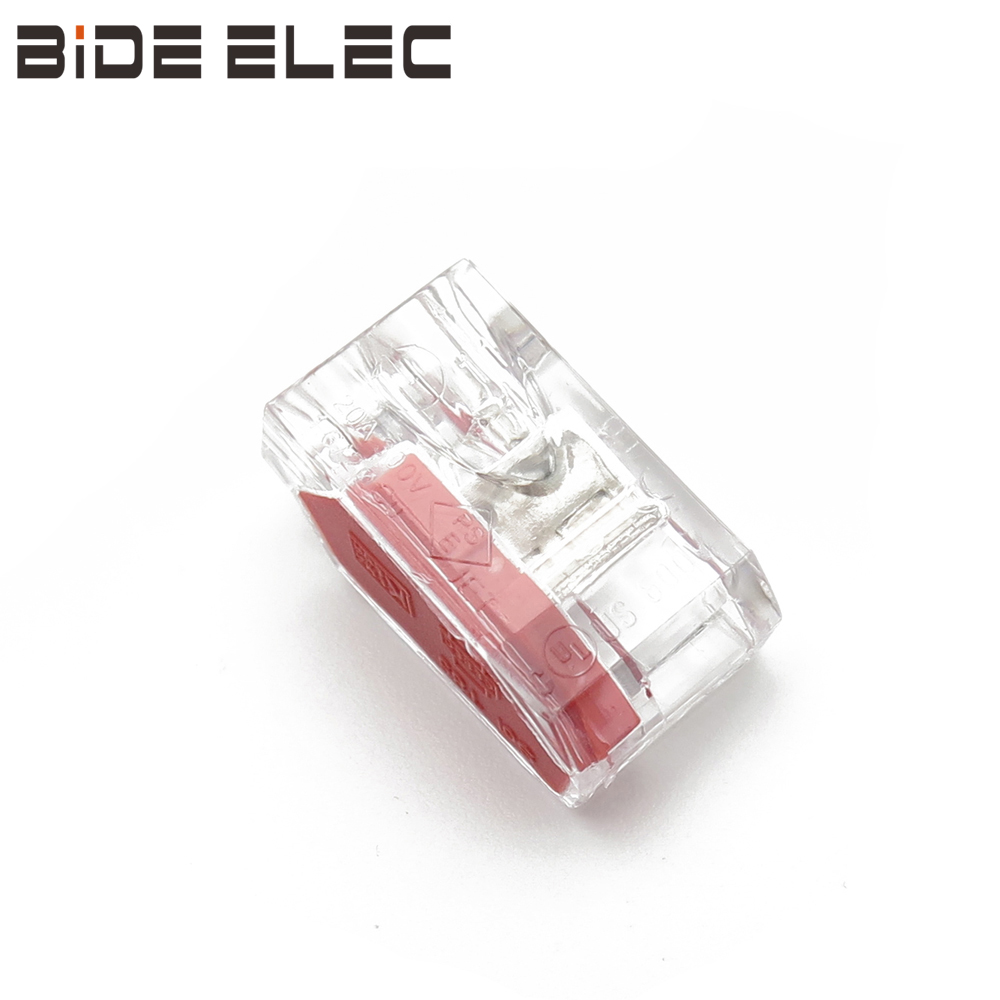

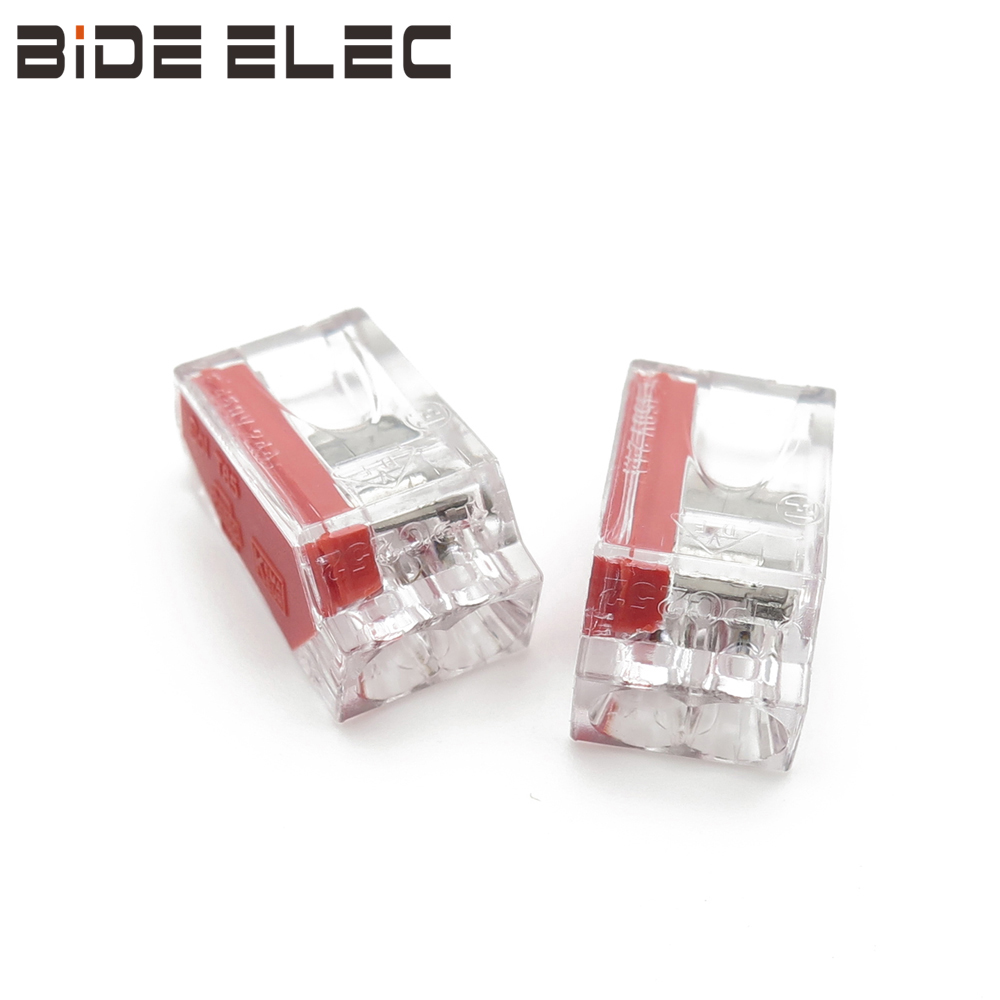

Gold pen heavy power pc-252xt transparent plug-in connector

Market Price: 0.7

Wholesale Price:$ 0.55

Brand: Heavy Power
Name: spring type spiral connector
Model: pc-252xt
Origin: Taiwan
Package: 500 pieces / pack

-PC case, UL 94v-2 flame retardant grade
-Stainless steel shrapnel, high conductivity copper and steel plate
-Compact and easy to install
-It is suitable for single and multi strand hard wires, and can repeatedly insert wires with larger specifications than those removed previously
-It can be used in lighting wiring and electrical junction box of building hydropower project

Technical parameters:
IEC:24A 450V T110

UL:600V #22-#12AWG,Sol Cu

Wire size: 1.5mm2 / > 1.5mm2
Working temperature: 105 ℃
Packing: 500 pieces / pack, 5K / case

Material description:
Color: transparent + Red
Material of rubber shell: PC
Contact material: Copper
Spring material: high grade galvanized steel
