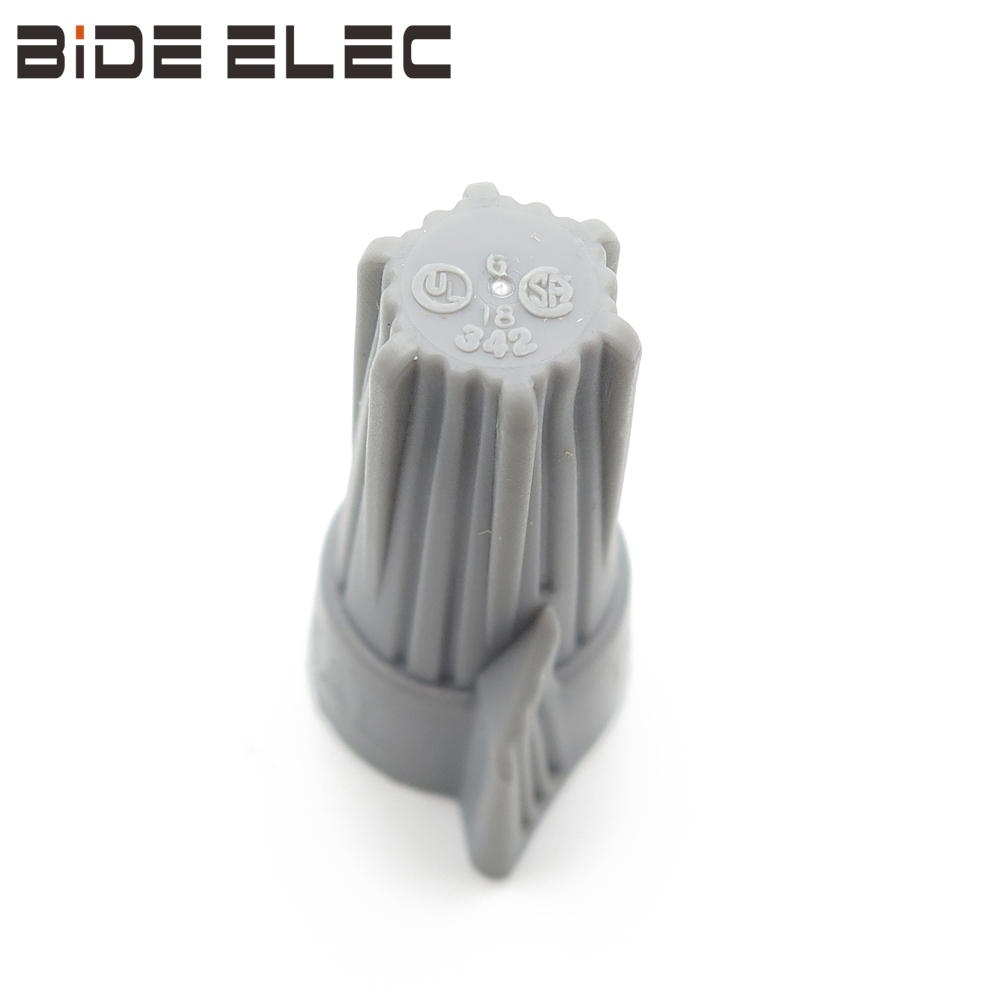

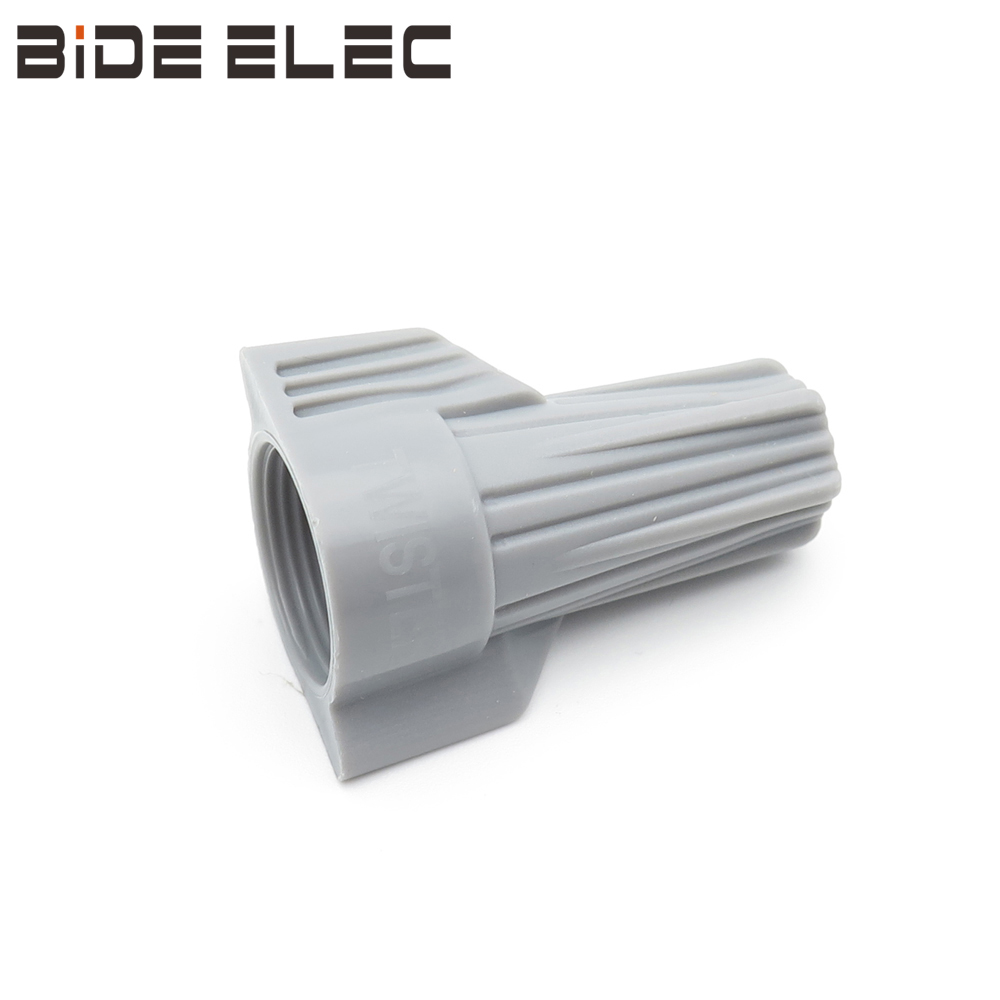

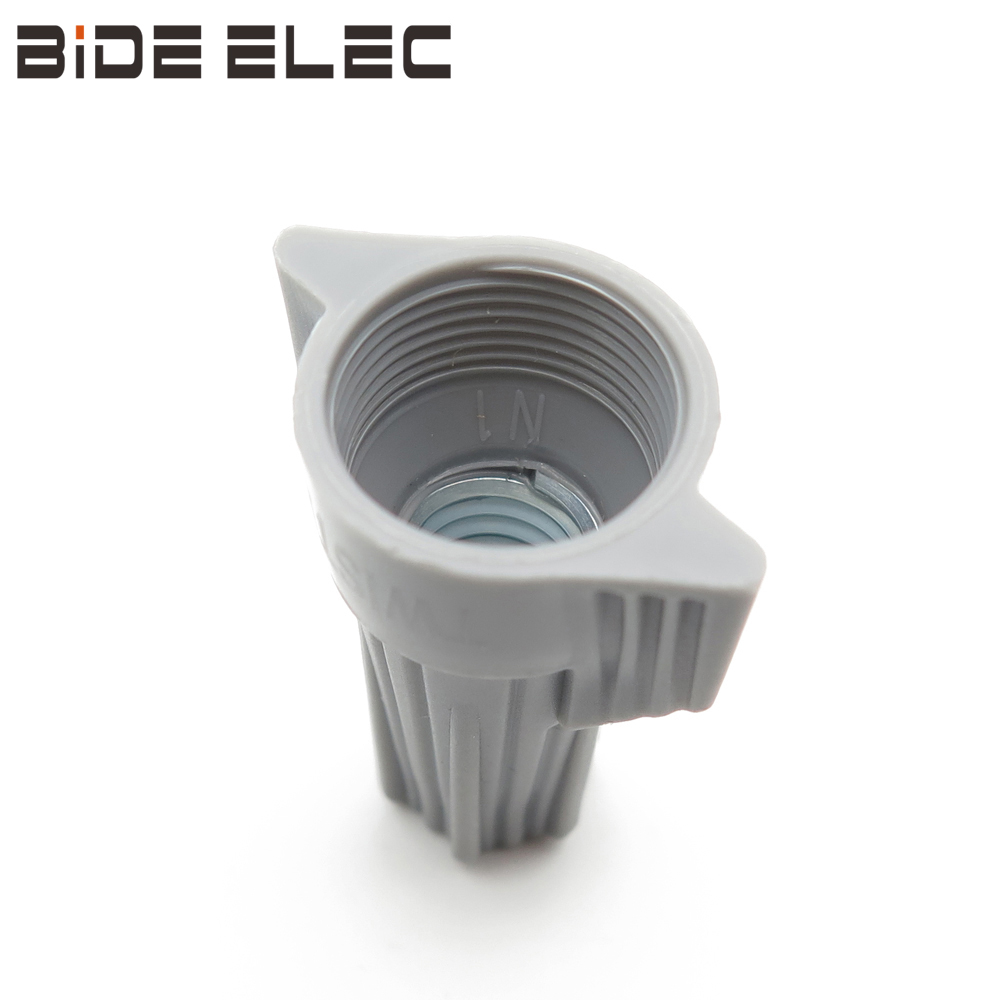

IDEAL 342 Gray Twisted Wire-Nut connector

Market Price: 0.32

Wholesale Price:$ 0.26

IDEAL 342 , is twist connector , can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;
IDEAL 342 connector ,gray face , has built-in stainless steel wire, which is suitable for single / multi strand soft and hard wires with a minimum of 3 * 2.5mm² and single / multi strand soft and hard wires with a maximum of 5 * 4mm² or 3 * 6mm², which easily solves the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
IDEAL 342 terminal with high quality performance :
1. Scientific design: square section stainless steel wire design, can exert the holding force on the conductor, make the connector close and firm, determine the electrical connection stability ;
2. Exquisite technology: using hot injection molding process, avoid falling off between the shell and spring, eliminate electrical fire hazards ;
3. Excellent material: never use recycled plastic The flame retardant materials meet the requirements of UL 94v-2 ;
IDEAL twisted connector series have seven models, IDEAL 73B, IDEAL ZT-115, IDEAL 341, IDEAL 342, IDEAL 452, IDEAL 61, IDEAL 62 ;

IDEAL series products have passed almost global certification requirements, including UL, GB, ROHS, CSA, CE, CQC, etc ;

点击购买

-Stainless steel inner core with square cross section provides the highest quality grip effect
-Help design and installation more labor-saving
-It conforms to IEC 60998-2-4 specification and has passed 300V / 600V UL and CSA certification
-The application of grounding and connection meets the requirements of UL 467
-Reusable

Technical parameters:
Rated voltage: 600V
Applicable wire diameter: Min 3 * 2.5mm², max 5 * 4.0mm² or 3 * 6.0 mm²
Working temperature: 105 °C

Material description:
Insulation material: Polypropylene
Material of inner core: stainless steel

Product certification:
UL, CSA, CE, CQC, etc.

For more details, please click 30-342
