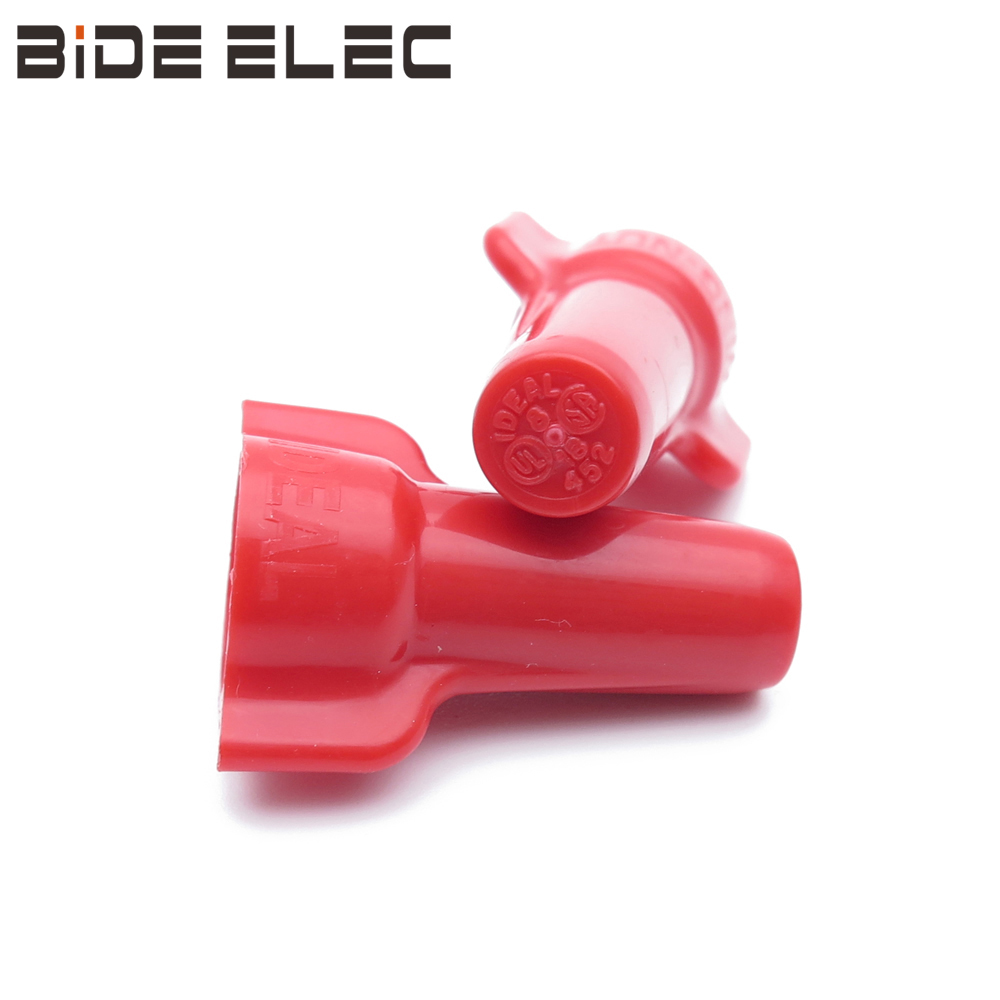

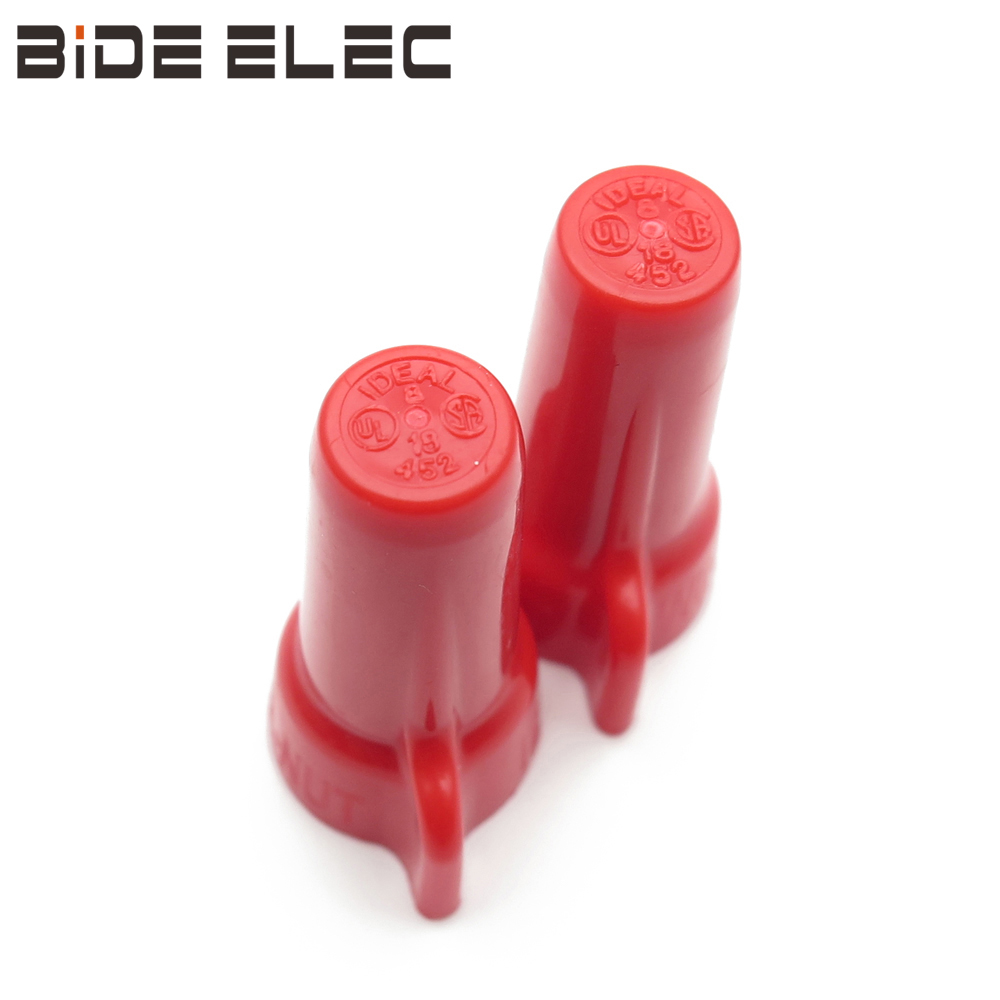

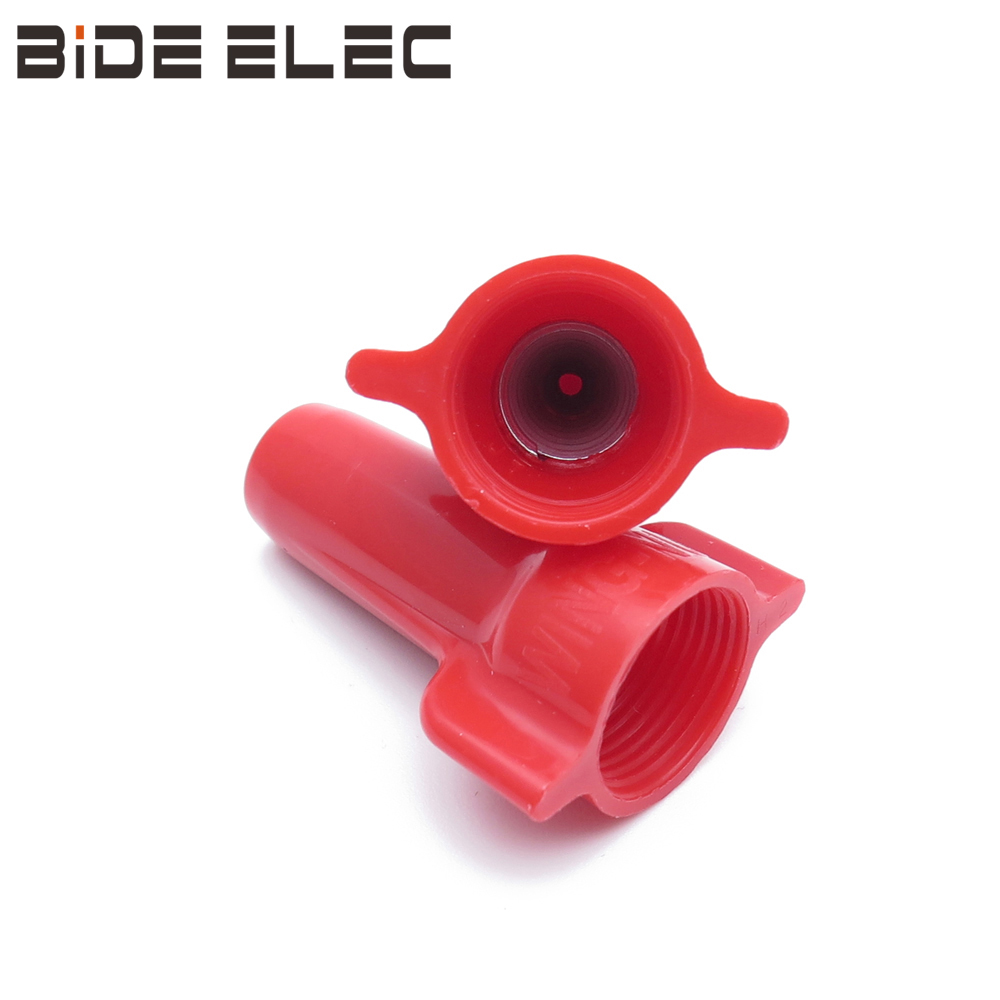

IDEAL 452 Red Twisted Wire-Nut connector

Market Price: 0.2

Wholesale Price:$ 0.17

IDEAL 452, is twist connector, can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
IDEAL 452 connector ,red face ,has built-in stainless steel wire, which is suitable for single / multi strand soft and hard wires with a minimum of 2 * 1.5mm² and single / multi strand soft and hard wires with a maximum of 4 * 4mm² or 3 * 6mm², which easily solves the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
IDEAL 452 terminal with high quality performance :
1. Scientific design: square section stainless steel wire design, can exert the holding force on the conductor, make the connector close and firm, determine the electrical connection stability ;
2. Exquisite technology: using hot injection molding process, avoid falling off between the shell and spring, eliminate electrical fire hazards ;
3. Excellent material: never use recycled plastic The flame retardant materials meet the requirements of UL 94v-2 ;
IDEAL twisted connector series have seven models, IDEAL 73B, IDEAL ZT-115, IDEAL 341, IDEAL 342, IDEAL 452, IDEAL 61, IDEAL 62 ;

IDEAL eries products have passed almost global certification requirements, including UL, GB, ROHS, CSA, CE, CQC, etc. ;

点击购买

-Stainless steel inner core with square cross section provides the highest quality grip effect
-Help design and installation more labor-saving
-It conforms to IEC 60998-2-4 specification and has passed 300V / 600V UL and CSA certification
-The application of grounding and connection meets the requirements of UL 467
-Reusable

Technical parameters:
Rated voltage: 600V
Applicable wire diameter: Min 2 * 1.5, Max 4 * 4.0 or 3 * 6.0
Working temperature: 105 & deg; C

Material description:
Insulation material: Polypropylene
Material of inner core: stainless steel

Product certification:
UL, CSA, CE, CQC, etc.
