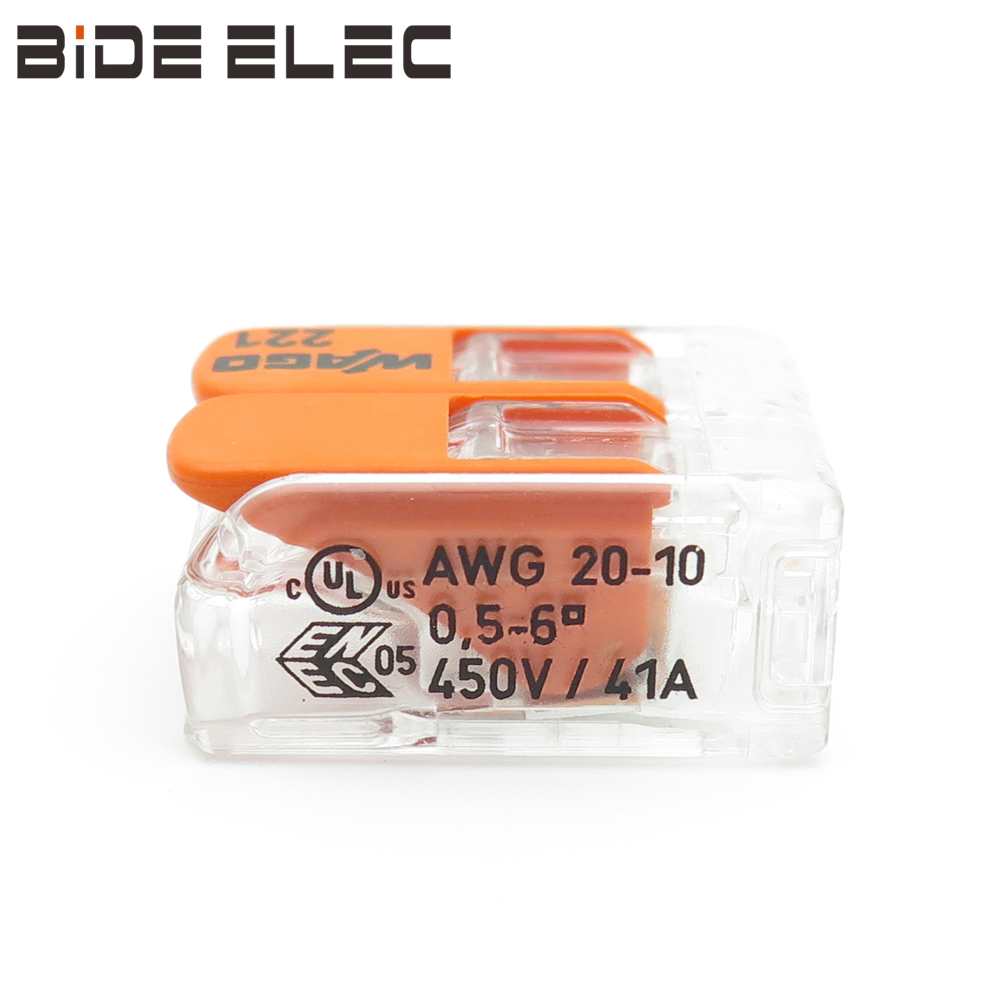

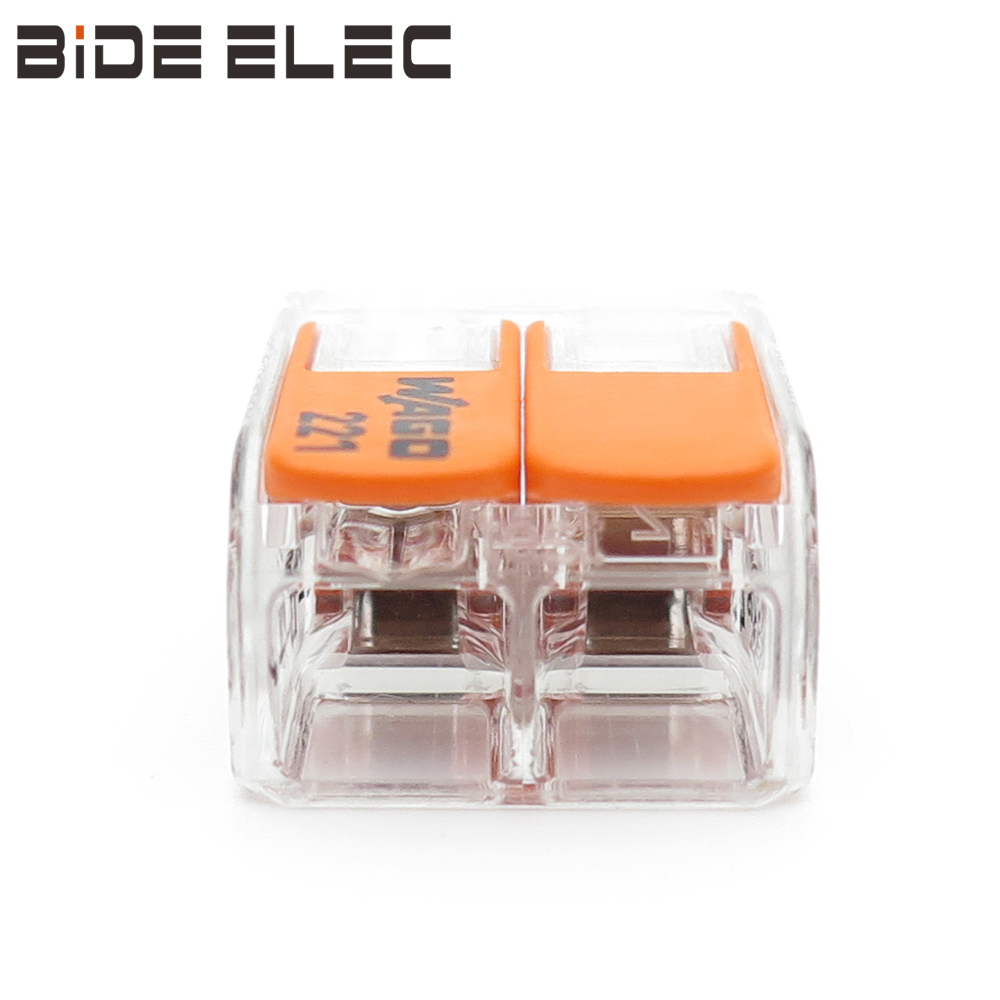

WAGO 221-612 Installation Terminal BLocks And Compact Splicing Connector

Market Price: 0.8

Wholesale Price:$ 0.55

WAGO 221-612 is compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;
WAGO 221-612 connector has two interworking holes, which can connect 0.5-6.0mm2 single / multi strand soft and hard wires at will, which can easily solve the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;
The design of the WAGO 221-612 connector is simple, convenient and reliable ;

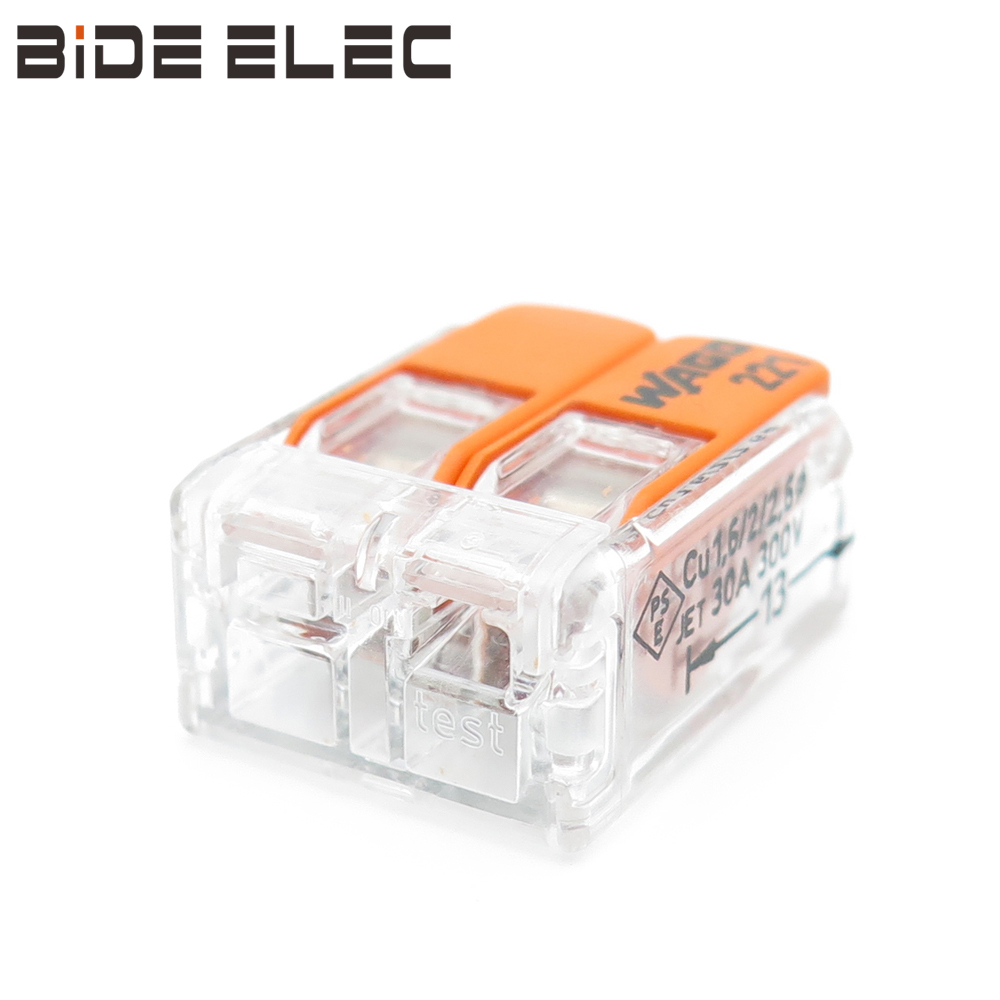

WAGO 221-612 terminal has a nylon 66 transparent shell, so that the internal wiring of the terminal is clear, and the terminal has its own measuring hole. After wiring, you can use a measuring pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the orange handle, pull out insert the wire, press the orange handle) ;
WAGO 221-612 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 221 series connectors have six models, 221-412, 221-413, 221-415, 221-612, 221-613 and 221-615,
WAGO 221 series products have passed almost global certification requirements, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V ;
Rated current: 41A ;
Rated power: 9KW ;
Applicable wire diameter: 0.5-6mm2 single multi strand soft and hard wire ;

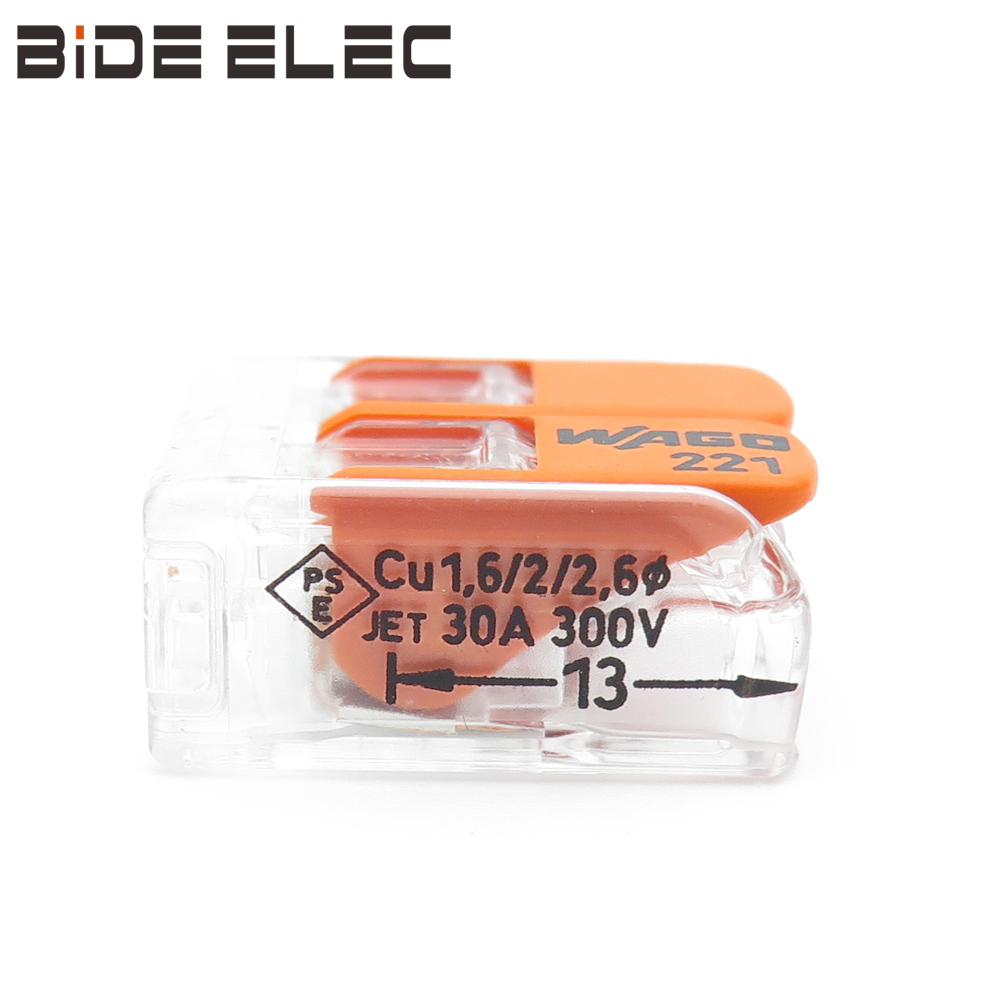

Stripping length: 13mm ;
Product size: 21.1 * 16.0 * 10.1mm ;

Material description:
Conductive material: high purity electrolytic copper ;
Contact surface material: special tin alloy coating ;
Clamping material: nichrome spring steel ;
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC) ;

Product Certification:
UL, VDE, PSE, CE, CQC, etc.
